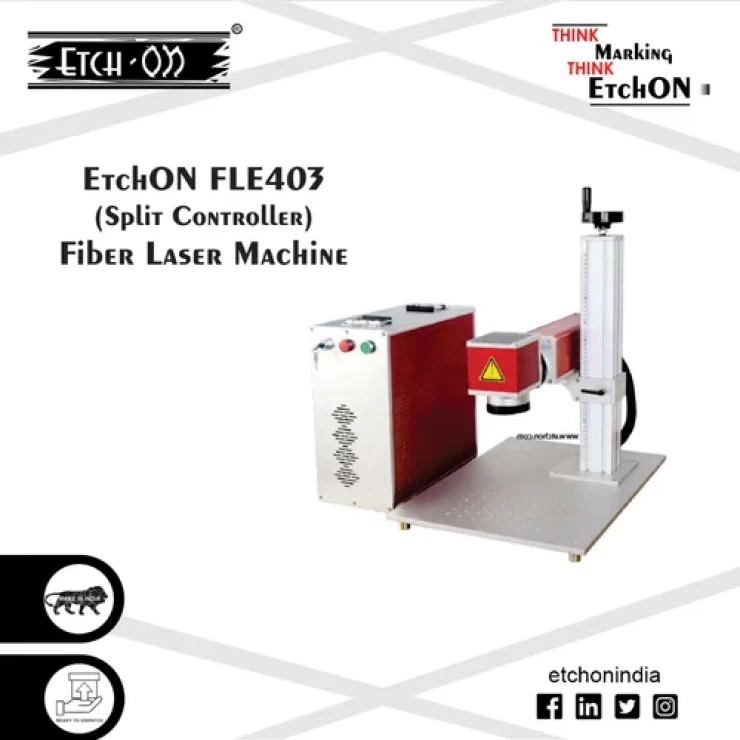

Split Type Fiber Laser Marking Machine, Model : EtchON FLE403D - REKHA PENS

211,750₹ ~~215,750₹~~

Ø Domestic Series Model Ø Tabletop Portable Fiber Laser Machine : Model FLE403D ( Standalone ) Ø Suitable for Small Space application Personal Use Ø 20W Pulsed Fiber Laser Source Ø Marking Scope :110 mm x 110mm ( Other Sizes Optional ) Ø EZ-CAD PC based System Ø EtchON FLECAD Control System (Standalone 18" LED, no need of Separate PC ) - Optional Ø Split Type Separate Controller Body Ø Support Plain/ ArcMarking Ø Supports Auto Serial Number, Graphics and 2D, QR Barcode Support Ø Manufactured with Genuine Components like Sino Galvo, Meanwell etc Ø IP Norms Switches and Steel Connectors with Print Foot control Switch Manual Up and Down Marking Head Travel of 500 mm

Category: Laser Machines

Sub Category: uncategorized

Laser Type	Fiber Laser
Brand	EtchON
Power Supply	220 VAC +/- 10 % 50 Hz or 110 VAC +/- 10 % 60 Hz
Laser Generator Life	85000-100000 Hours
Optional Marking Area	150 mm x 150 mm,200 mm x 200 mm
Respected Precision	0.001 mm
Wave Length	1064 +/- 10nm
Frequency of Pluse	20-80 kHz
Mini Line Width	0.01 mm
Mini Line Characters	0.2 mm
Model	EtchON FLE403D
Operation Temperature	10-35 Degree C.
Standard Marking Area	110 mm x 110 mm
Marking Speed	7000 mm/s
Availability	In Stock
